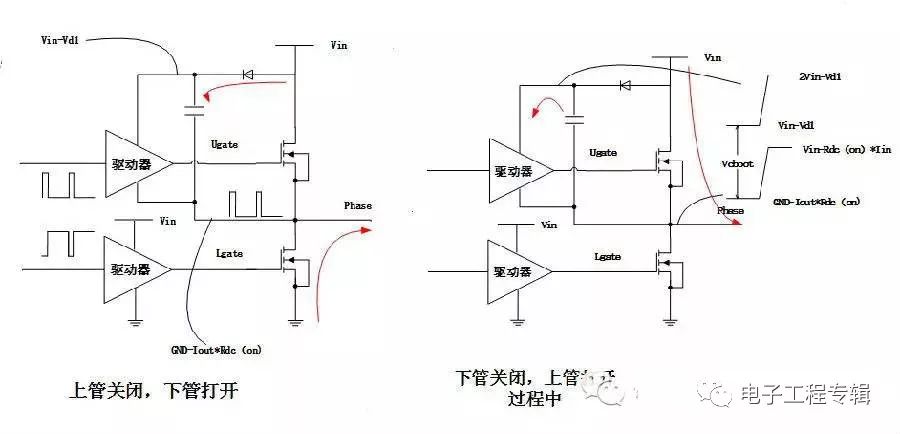

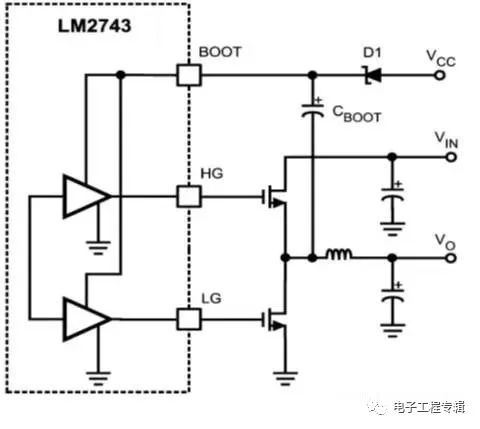

The bootstrap capacitor plays a crucial role in driving the high-side MOSFET. For the internal high-end MOSFET to operate properly, its gate voltage must be higher than the supply voltage (VCC). This is achieved through a bootstrap circuit, which effectively boosts the voltage beyond VCC. Without this boost, the high-side MOSFET would not be able to turn on correctly. A bootstrap circuit typically consists of a diode and a capacitor, working together to provide the necessary gate drive voltage. The basic idea behind a bootstrap circuit is simple: when the low-side MOSFET is on, the capacitor charges up to a voltage slightly higher than VCC. Then, when the low-side MOSFET turns off and the high-side MOSFET is supposed to turn on, the capacitor discharges through the gate of the high-side MOSFET, providing the required gate-source voltage. This ensures that the high-side MOSFET can switch efficiently without requiring an isolated power supply. One key advantage of the bootstrap technique is that it prevents sudden voltage spikes across the capacitor. For example, if the drain voltage of the MOSFET is 12V and the source is at 0V, the gate voltage must also be around 12V to keep the MOSFET on. However, when the MOSFET turns on, the source voltage rises, causing the gate-source voltage (Vgs) to drop, potentially turning the MOSFET off. This can lead to rapid switching and voltage oscillations, which may damage the device over time. To avoid this issue, a small capacitor is often connected between the gate and the source of the MOSFET. This capacitor helps maintain a stable gate voltage during transitions, ensuring the MOSFET remains on even as the source voltage changes. The bootstrap capacitor thus acts as a temporary energy storage element, allowing the high-side MOSFET to function reliably in switching applications. Mems Microphone,Digital Mems Microphone,Analog Mems Microphone,Ultrasonic Mems Microphone NINGBO SANCO ELECTRONICS CO., LTD. , https://www.sancobuzzer.com
